ONE::gui::Control Class Reference

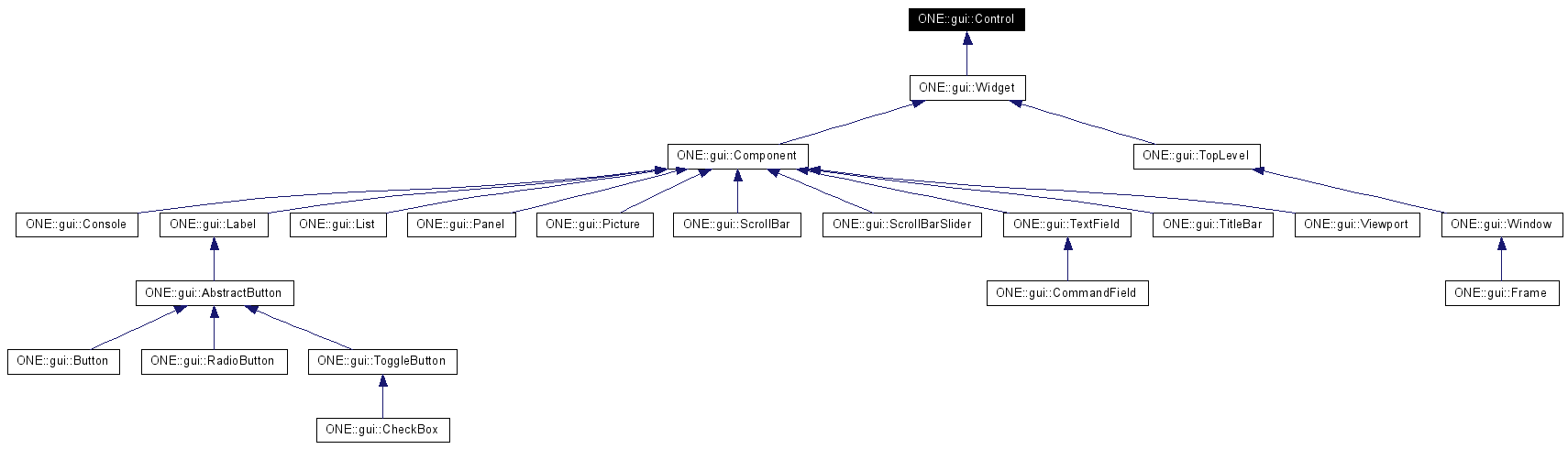

Inheritance diagram for ONE::gui::Control:

[legend]List of all members.

---

Detailed Description

interface for objects that permit some sort of user interaction.

Controls may be disabled, which stops them from reacting to user input.

Author:

Daniel Seibert

Public Member Functions
virtual bool	hasFocus () const =0
	checks if this object has the keyboard focus
virtual bool	isEnabled () const =0
	checks if this widget is enabled
virtual bool	isUnder (const Point &pt) const =0
	checks if this widget is positioned under the given point.
virtual void	processKeyEvent (KeyEvent &evt)=0
	notifies the widget of a key event
virtual void	processMouseMotion (MouseEvent &evt)=0
	notifies the widget of a mouse motion
virtual void	processMousePress (MouseEvent &evt)=0
	notifies the widget of a pressed mouse button
virtual void	processMouseRelease (MouseEvent &evt)=0
	notifies the widget of a released mouse button
virtual void	releaseFocus () const =0
	drops the input focus
virtual bool	requestFocus ()=0
	attempts to get the input focus for this object
virtual void	setEnabled (bool e)=0
	enables or disables this widget
virtual	~Control ()

---

Constructor & Destructor Documentation

virtual ONE::gui::Control::~Control (   )  [inline, virtual]

---

Member Function Documentation

virtual bool ONE::gui::Control::hasFocus (   )  const [pure virtual]

checks if this object has the keyboard focus Returns: true if this object has the input focus, false otherwise Implemented in ONE::gui::Component, and ONE::gui::TopLevel.

virtual bool ONE::gui::Control::isEnabled (   )  const [pure virtual]

checks if this widget is enabled Returns: true if is enabled, false otherwise Implemented in ONE::gui::Widget.

virtual bool ONE::gui::Control::isUnder (  const Point &  pt  )  const [pure virtual]

checks if this widget is positioned under the given point. Parameters: pt  a point Returns: true if the widget's clickable area contains pt Implemented in ONE::gui::Picture, and ONE::gui::Widget.

virtual void ONE::gui::Control::processKeyEvent (  KeyEvent &  evt  )  [pure virtual]

notifies the widget of a key event If this is not a top level container and the widget processes the event, it must call the events consume function. Otherwise evt will also be passed to this object's top level parent. Implemented in ONE::gui::AbstractButton, ONE::gui::CommandField, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

virtual void ONE::gui::Control::processMouseMotion (  MouseEvent &  evt  )  [pure virtual]

notifies the widget of a mouse motion This event may occur both inside and outside of this object's bounds. Implemented in ONE::gui::AbstractButton, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

virtual void ONE::gui::Control::processMousePress (  MouseEvent &  evt  )  [pure virtual]

notifies the widget of a pressed mouse button Implementations may assume that the mouse position is on this widget (i.e. isUnder returned true). Implemented in ONE::gui::AbstractButton, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

virtual void ONE::gui::Control::processMouseRelease (  MouseEvent &  evt  )  [pure virtual]

notifies the widget of a released mouse button This event may occur both inside and outside of this object's bounds. Implemented in ONE::gui::AbstractButton, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

virtual void ONE::gui::Control::releaseFocus (   )  const [pure virtual]

drops the input focus Implemented in ONE::gui::Component, and ONE::gui::TopLevel.

virtual bool ONE::gui::Control::requestFocus (   )  [pure virtual]

attempts to get the input focus for this object The function may not succeed in acquiring the focus in some situations. For example, calling this function on a top level container while a modal Frame is visible will fail. Returns: if the request was granted Implemented in ONE::gui::Component, and ONE::gui::TopLevel.

virtual void ONE::gui::Control::setEnabled (  bool  e  )  [pure virtual]

enables or disables this widget Disabled widgets will no longer react to user input. Parameters: e  true to enable the widget, false to disable it. Implemented in ONE::gui::Button, ONE::gui::Console, ONE::gui::Frame, ONE::gui::TitleBar, and ONE::gui::Widget.

---
