ONE::model::Model Class Reference

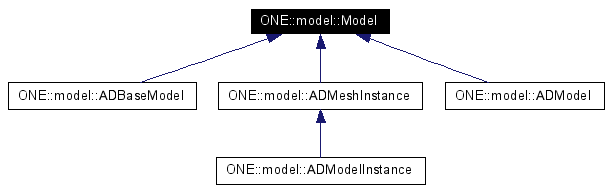

Inheritance diagram for ONE::model::Model:

[legend]List of all members.

---

Detailed Description

interface for static model data

Public Member Functions
virtual const Box	getBoundingBox (AnimationData *=NULL)=0
virtual void	getIndices (int *&indices, int &numTri) const =0
std::string	getName () const
virtual void	getNormals (Array< Vector3 > *&normals) const
virtual int	getNumTri () const =0
virtual void	getScaledVertices (float *&verts, int &numVerts, Vector3 scale)=0
virtual void	getTexCoords (Array< Vector2 > *&texCoord) const =0
virtual GImage *	getTexImage () const =0
virtual void	getVertices (float *&verts, int &numVerts) const =0
virtual void	releaseScaledVertices (Vector3 scale)=0
virtual void	render (RenderDevice *rd)=0
virtual void	setLightMap1 (GImage *lm, string entityname)
virtual void	setLightMap2 (GImage *lm, string entityname)
void	setName (std::string n)
	~Model ()
Protected Attributes
std::string	name

---

Constructor & Destructor Documentation

ONE::model::Model::~Model (   )  [inline]

TODO: Move to Draw::defaultModel(Model model)

---

Member Function Documentation

virtual const Box ONE::model::Model::getBoundingBox (  AnimationData *  = NULL  )  [pure virtual]

Implemented in ONE::model::ADMeshInstance, and ONE::model::ADModelInstance.

virtual void ONE::model::Model::getIndices (  int *&  indices, int &  numTri )  const [pure virtual]

Implemented in ONE::model::ADMeshInstance.

std::string ONE::model::Model::getName (   )  const [inline]

virtual void ONE::model::Model::getNormals (  Array< Vector3 > *&  normals  )  const [inline, virtual]

Reimplemented in ONE::model::ADMeshInstance.

virtual int ONE::model::Model::getNumTri (   )  const [pure virtual]

Implemented in ONE::model::ADMeshInstance.

virtual void ONE::model::Model::getScaledVertices (  float *&  verts, int &  numVerts, Vector3  scale )  [pure virtual]

Implemented in ONE::model::ADMeshInstance, and ONE::model::ADModelInstance.

virtual void ONE::model::Model::getTexCoords (  Array< Vector2 > *&  texCoord  )  const [pure virtual]

Implemented in ONE::model::ADMeshInstance.

virtual GImage* ONE::model::Model::getTexImage (   )  const [pure virtual]

Implemented in ONE::model::ADMeshInstance.

virtual void ONE::model::Model::getVertices (  float *&  verts, int &  numVerts )  const [pure virtual]

Implemented in ONE::model::ADMeshInstance, and ONE::model::ADModelInstance.

virtual void ONE::model::Model::releaseScaledVertices (  Vector3  scale  )  [pure virtual]

Implemented in ONE::model::ADMeshInstance, and ONE::model::ADModelInstance.

virtual void ONE::model::Model::render (  RenderDevice *  rd  )  [pure virtual]

Implemented in ONE::model::ADMeshInstance, ONE::model::ADModel, and ONE::model::ADModelInstance.

virtual void ONE::model::Model::setLightMap1 (  GImage *  lm, string  entityname )  [inline, virtual]

Reimplemented in ONE::model::ADMeshInstance.

virtual void ONE::model::Model::setLightMap2 (  GImage *  lm, string  entityname )  [inline, virtual]

Reimplemented in ONE::model::ADMeshInstance.

void ONE::model::Model::setName (  std::string  n  )  [inline]

---

Member Data Documentation

std::string ONE::model::Model::name [protected]

---
