ONE::network::Server Class Reference

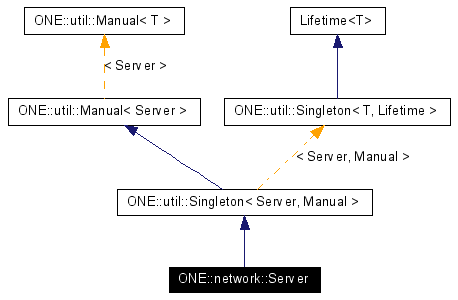

Inheritance diagram for ONE::network::Server:

[legend]List of all members.

---

Detailed Description

a server that allows multiplayer gaming

Author:

Henning Hamer

Public Member Functions
int	addSyncable (Syncable *_syncableP)
	Add a Syncable in order to synchronize it across the network.
void	addSyncables (Array< Syncable * > _syncablePArray)
	Add several Syncables in order to synchronize them across the network.
void	broadcastScriptEvent (int _identifier, const string &_param)
	Can be used when a script is not executed on the clients.
void	doNetwork ()
	Main method of the server. Must be called from main loop.
bool	getAllClientsReady ()
	Indicates if the game can begin.
void	getAllPlayerIDs (Array< int > &ids)
int	getConnectedClientsAmount ()
	Returns the amount of connected clients.
SyncableMap *	getSyncableMapP ()
	Returns a pointer to the server's syncableMap.
void	removeSyncable (Syncable *_syncableP)
	Removes a Syncable from the server and all clients.
void	removeSyncables (Array< Syncable * > _syncablePArray)
	Removes the Syncables from the server and all clients.
void	sendScriptEventToClient (int _syncableID, int _identifier, const string &_param)
	Can be used to notify a client about reached checkpoints and similar events.
void	setBlockNewClients (bool _blockNewClients)
	Stops more clients from connecting.
void	setContext (NetworkDevice *_networkDeviceP, Log *_networkLogP, Logic *_logicP, DiscoverySettings *_discoverySettingsP)
	Prepares the server for use.
void	shutDown ()
	Shuts down the server. Can be called several times.
void	startUp (DiscoveryAdvertisement *_discoveryAdvertisementP, int _portNumber, int _maxPlayers)
	Method to start the server. Don't call a second time before shutting down first.
void	updateAllSyncables ()
	Causes the properties of all added Syncables to be broadcastet.
void	updateAllSyncableStates ()
	Causes the state of all added Syncables to get broadcastet.
void	updateLogic ()
	Synchronizes the state of the Logic class across the network (example: who is leading the race?).
void	updateSyncable (Syncable *_syncableP)
	Synchronizes the properties of an added Syncable via a MessageCreateSyncable.
void	updateSyncables (Array< Syncable * > _syncablePArray)
	Causes the properties of the Syncables to be broadcastet.
void	updateSyncableState (Syncable *_syncableP)
	Synchronizes only the state of an added Entity via a MessageSyncableState.
void	updateSyncableStates (Array< Syncable * > _syncablePArray)
	Causes the state of the Syncables to get broadcastet.
Static Public Member Functions
static void	createInstance ()
	creates the singleton instance
static void	destroyInstance ()
	destroys the singleton instance
static Server *	getInstance ()
	accesses the singleton instance
static bool	isActive ()
	checks if the singleton is active
static bool	isDestroyed ()
	checks if the singleton is destroyed
static bool	isVirgin ()
	checks if the singleton has not been initialized
Protected Member Functions
	Singleton ()
Static Protected Member Functions
static void	destroyedError ()
static void	initInstance ()
Friends
class	Client

---

Member Function Documentation

int ONE::network::Server::addSyncable (  Syncable *  _syncableP  )

Add a Syncable in order to synchronize it across the network. called by 1. acceptIncomingClient - for adding a special Entity: PlayerEntitiy 2. non network class - for adding a normal Entity Parameters: _syncableP  pointer to a Syncable to be synchronized over the network Returns: the assigned syncableID

void ONE::network::Server::addSyncables (  Array< Syncable * >  _syncablePArray  )

Add several Syncables in order to synchronize them across the network. Parameters: _syncablePArray  array of Syncable pointers to be synchronized over the network

void ONE::network::Server::broadcastScriptEvent (  int  _identifier, const string &  _param )

Can be used when a script is not executed on the clients. Parameters: _identifier  indicates the type of script event _param  the parameters for the script event

static void ONE::util::Manual< Server >::createInstance (   )  [static, inherited]

creates the singleton instance

static void ONE::util::Manual< Server >::destroyedError (   )  [static, protected, inherited]

static void ONE::util::Manual< Server >::destroyInstance (   )  [static, inherited]

destroys the singleton instance

void ONE::network::Server::doNetwork (   )

Main method of the server. Must be called from main loop.

bool ONE::network::Server::getAllClientsReady (   )

Indicates if the game can begin. return true when all connected clients are ready for a game

void ONE::network::Server::getAllPlayerIDs (  Array< int > &  ids  )

int ONE::network::Server::getConnectedClientsAmount (   )

Returns the amount of connected clients. Returns: the amount of connected clients

static Server * ONE::util::Singleton< Server , Manual >::getInstance (   )  [static, inherited]

accesses the singleton instance The exact operation executed by calling this function is determined by the singleton policies. Returns: a pointer to the singleton instance

SyncableMap* ONE::network::Server::getSyncableMapP (   )

Returns a pointer to the server's syncableMap. Returns: pointer to the server's syncableMap

static void ONE::util::Manual< Server >::initInstance (   )  [static, protected, inherited]

static bool ONE::util::Singleton< Server , Manual >::isActive (   )  [static, inherited]

checks if the singleton is active Returns: if the singleton is instantiated

static bool ONE::util::Singleton< Server , Manual >::isDestroyed (   )  [static, inherited]

checks if the singleton is destroyed This function returns true if an instance existed and was destroyed. Note that in some cases it is possible to revive a singleton. Returns: if the singleton is destroyed

static bool ONE::util::Singleton< Server , Manual >::isVirgin (   )  [static, inherited]

checks if the singleton has not been initialized A singleton is not initialized if no instance exists and no instance has been destroyed. Returns: if the singleton is untouched

void ONE::network::Server::removeSyncable (  Syncable *  _syncableP  )

Removes a Syncable from the server and all clients. Parameters: _syncableP  pointer to a Syncable

void ONE::network::Server::removeSyncables (  Array< Syncable * >  _syncablePArray  )

Removes the Syncables from the server and all clients. Parameters: _syncablePArray  array of Syncable pointers

void ONE::network::Server::sendScriptEventToClient (  int  _syncableID, int  _identifier, const string &  _param )

Can be used to notify a client about reached checkpoints and similar events. Parameters: _syncableID  Owner of the UserEntity with this ID is the receiver _identifier  indicates the type of script event _param  the parameters for the script event

void ONE::network::Server::setBlockNewClients (  bool  _blockNewClients  )

Stops more clients from connecting. Parameters: _blockNewClients  false, when no more clients may connect

void ONE::network::Server::setContext (  NetworkDevice *  _networkDeviceP, Log *  _networkLogP, Logic *  _logicP, DiscoverySettings *  _discoverySettingsP )

Prepares the server for use. Sets the state of the server so that is can function properly Parameters: _networkDeviceP  pointer to a NetworkDevice. _networkLogP  pointer to a Log. _logicP  Pointer to a Logic.

void ONE::network::Server::shutDown (   )

Shuts down the server. Can be called several times.

ONE::util::Singleton< Server , Manual >::Singleton (   )  [protected, inherited]

void ONE::network::Server::startUp (  DiscoveryAdvertisement *  _discoveryAdvertisementP, int  _portNumber, int  _maxPlayers )

Method to start the server. Don't call a second time before shutting down first. Parameters: _discoveryAdvertisementP  contains the information broadcasted by the DiscoveryServer _portNumber  the desired game port _maxPlayers  limits the allowed number of players. _maxPlayers=1 means single player mode

void ONE::network::Server::updateAllSyncables (   )

Causes the properties of all added Syncables to be broadcastet.

void ONE::network::Server::updateAllSyncableStates (   )

Causes the state of all added Syncables to get broadcastet.

void ONE::network::Server::updateLogic (   )

Synchronizes the state of the Logic class across the network (example: who is leading the race?).

void ONE::network::Server::updateSyncable (  Syncable *  _syncableP  )

Synchronizes the properties of an added Syncable via a MessageCreateSyncable. Parameters: _syncableP  pointer to a Syncable

void ONE::network::Server::updateSyncables (  Array< Syncable * >  _syncablePArray  )

Causes the properties of the Syncables to be broadcastet. Parameters: _syncablePArray  array of Syncable pointers

void ONE::network::Server::updateSyncableState (  Syncable *  _syncableP  )

Synchronizes only the state of an added Entity via a MessageSyncableState. Parameters: _syncableP  pointer to a Syncable

void ONE::network::Server::updateSyncableStates (  Array< Syncable * >  _syncablePArray  )

Causes the state of the Syncables to get broadcastet. Parameters: _syncablePArray  array of Syncable pointers

---

Friends And Related Function Documentation

friend class Client [friend]

---
