ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base > Class Template Reference

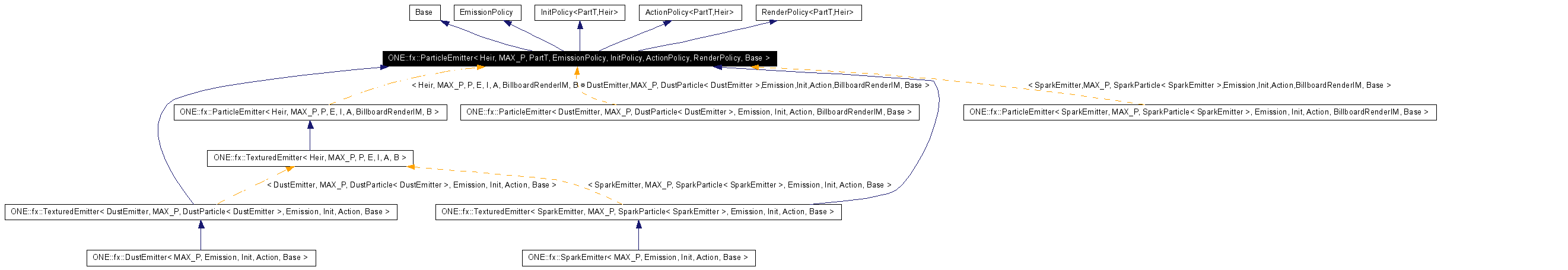

Inheritance diagram for ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >:

[legend]List of all members.

---

Detailed Description

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase>
class ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >

manages emission, initialization and processing of particles

The emitter holds a pool of MAX_P particles of type PartT. A varying number of these are considered active, the rest is considered dead and will not be processed until the active count is increased.
This template accepts a number of policies that control particle and emitter behavior and allow easy creation of a wide range of different particle systems with little or no overhead. These policies enrich the interface, i.e. they may be used to add functions to the emitter class that may be called from the outside.
Many of the policies will make assumptions about the used particle type. See those policies' documentation for details. If the intended particle class does not meet the requirements it must either be extended in an appropriate way or a custom policy must be created.

Parameters:

	Heir	the inheriting class
	MAX_P	the maximum number of particles this emitter can handle at the same time. Note that this many particles are always pooled, regardless of the number of active particles.
	PartT	the handled particle type. This may be any appropriate type including ParticleEmitter s. The particle class must at least provide a getTTL function that returns the time to the particle's death. This should usually be the remaining life time in seconds, however, this class only assumes that particles with a TTL less or equal to zero are dead.
	EmissionPolicy	controls the number of particles emitted each time process is called. The policy must provide a getEmissionCount function that accepts the time since the last frame (aka deltaT) and returns the number of particles to be emitted during that time.
	InitPolicy	handles particle initialization. This policy must provide a void init function that accepts a pointer to this emitter and a reference to the particle that will be initialized.
	ActionPolicy	controls the particle's behavior. The action policy must provide a void process function that accepts a pointer to this emitter, a reference to the particle being processed and the time step. That function is called for each particle every time ParticleEmitter::process is called.
	RenderPolicy	handles the particle rendering. It must have the following functions: beginRender(Renderer&): called first for stand-alone rendering endRender(Renderer&): called last for stand-alone rendering prepareEmitter(Emitter*,Renderer&): called once before particle loop finishEmitter(Emitter*,Renderer&): called once after particle loop render(Emitter*,Renderer&,Particle&): called for each particle
	Base	this emitter's base class. This argument may be used to adapt the emitter to different rendering and scene graph infrastructures. The default is SimpleBase.

Author:

Daniel Seibert

Public Types
typedef ActionPolicy< PartT, Heir >	ActionP
typedef EmissionPolicy	EmissionP
typedef Heir	Heir
typedef InitPolicy< PartT, Heir >	InitP
typedef PartT	Particle
typedef util::SmartPointer< util::Iterator< PartT >, util::DestructiveCopy >	ParticleIt
typedef RenderP::Renderer	Renderer
typedef RenderPolicy< PartT, Heir >	RenderP
Public Member Functions
void	clear ()
	sets the number of active particles to 0
void	emit (unsigned int cnt)
	emits the given number of particles
unsigned int	getMaxParticles () const
unsigned int	getParticleCount () const
ParticleIt	getParticles ()
	accesses the active particles
bool	isParticleSortingEnabled () const
	ParticleEmitter ()
void	process (const float &deltaT)
	processes all particles
void	render (Renderer &, bool standAlone=true)
	renders this emitter's active particles
void	setParticleSortingEnabled (bool)
	enables or disables particle sorting
Classes
struct	Comparator

---

Member Typedef Documentation

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef ActionPolicy<PartT,Heir> ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::ActionP

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef EmissionPolicy ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::EmissionP

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef Heir ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::Heir

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef InitPolicy<PartT,Heir> ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::InitP

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef PartT ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::Particle

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef util::SmartPointer<util::Iterator<PartT>,util::DestructiveCopy> ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::ParticleIt

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef RenderP::Renderer ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::Renderer

template<class Heir, unsigned int MAX_P, class PartT, class EmissionPolicy, template< class, class > class InitPolicy, template< class, class > class ActionPolicy, template< class, class > class RenderPolicy, class Base = SimpleBase> typedef RenderPolicy<PartT,Heir> ONE::fx::ParticleEmitter< Heir, MAX_P, PartT, EmissionPolicy, InitPolicy, ActionPolicy, RenderPolicy, Base >::RenderP

---

Constructor & Destructor Documentation

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::ParticleEmitter (   )

---

Member Function Documentation

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> void ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::clear (   )

sets the number of active particles to 0 The particles are not destroyed and remain pooled.

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> void ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::emit (  unsigned int  cnt  )

emits the given number of particles The particles are initialized using the initialization policy. cnt must be smaller or equal to the number of available particles, i.e. the maximum number of particles minus the number of active particles. Parameters: cnt  the number of particles to add

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> unsigned int ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::getMaxParticles (   )  const [inline]

Returns: the maximum number of particles

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> unsigned int ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::getParticleCount (   )  const [inline]

Returns: the number of active particles

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> util::SmartPointer< util::Iterator< P >, util::DestructiveCopy > ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::getParticles (   )

accesses the active particles Dead particles will not be traversed by the iterator. Returns: an iterator over this emitter's active particles

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> bool ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::isParticleSortingEnabled (   )  const [inline]

Returns: if the particles are sorted before rendering

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> void ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::process (  const float &  deltaT  )

processes all particles This function emits particles according to the emission policy and then processes each one via the action policy. Parameters: deltaT  the step time in seconds Reimplemented in ONE::fx::TexturedEmitter< Heir, MAX_P, P, E, I, A, B >, ONE::fx::TexturedEmitter< DustEmitter, MAX_P, DustParticle< DustEmitter >, Emission, Init, Action, Base >, and ONE::fx::TexturedEmitter< SparkEmitter, MAX_P, SparkParticle< SparkEmitter >, Emission, Init, Action, Base >.

template<class H, unsigned int MAX, class P, class E, template< class, class > class I, template< class, class > class A, template< class, class > class R, class B> void ONE::fx::ParticleEmitter< H, MAX, P, E, I, A, R, B >::render (  Renderer &  , bool  standAlone = true )

renders this emitter's active particles Parameters: standAlone  true for stand-alone render, false for externally managed rendering

template<class H, unsigned int MAX, class P, class EP, template< class, class > class IP, template< class, class > class AP, template< class, class > class RP, class B> void ONE::fx::ParticleEmitter< H, MAX, P, EP, IP, AP, RP, B >::setParticleSortingEnabled (  bool   )  [inline]

enables or disables particle sorting If sorting is enabled, particles are sorted before rendering. This can be quite costly but is necessary for certain drawing techniques.

---
