ONE::gui::Displayable Class Reference

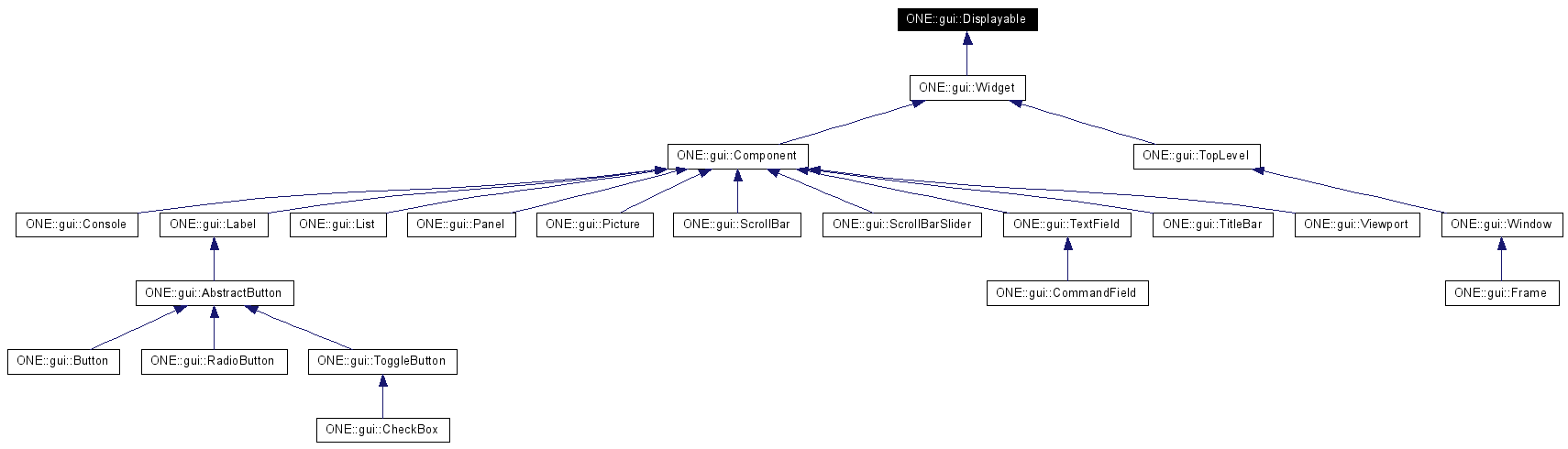

Inheritance diagram for ONE::gui::Displayable:

[legend]List of all members.

---

Detailed Description

The base class for all displayable GUI objects.

This class holds a bit string that may be used to efficiently store boolean properties and status flags. Great care must be taken to ensure that subclasses do not overwrite used bits.

Author:

Daniel Seibert

Public Member Functions
	Displayable (bool vis=true)
void	draw (Renderer2D *r, const int &x, const int &y, const int &w, const int &h)
	draws a portion of this object
void	draw (Renderer2D *)
	draws this object.
Color	getBackground () const
	accesses the color that should be used to render the object's background.
const Bounds &	getBounds () const
	accesses this object's bounds
const UIDSP &	getDelegate () const
virtual DelegateID	getDelegateID () const =0
	accesses the ID that identifies the object's UIDelegate type
Color	getForeground () const
	accesses the color that should be used to render the object's foreground.
const Point &	getPosition () const
	accesses this object's position
virtual Size	getPreferredSize () const =0
	determines this object's preferred size.
const Size &	getSize () const
	accesses this object's size
bool	isOpaque () const
	checks this object's opacity
virtual bool	isVisible () const
	acesses the visibility property
virtual void	layout ()=0
	lays out this component's internal elements
void	scheduleLayout ()
	schedules a call to layout
void	setBackground (const Color &c, bool laf=true)
	changes this object's background color
void	setBounds (const int &x, const int &y, const int &w, const int &h)
void	setBounds (const Bounds &b)
	changes this object's bounds
void	setForeground (const Color &c, bool laf=true)
	changes this object's foreground color
void	setOpaque (bool o, bool laf=true)
	changes this object's opacity
void	setPosition (const int &x, const int &y)
void	setPosition (const Point &p)
	changes this object's position
void	setPreferredSize (const Size &s)
	sets the object's preferred size
void	setSize (const int &w, const int &h)
void	setSize (const Size &s)
	changes this object's size
virtual void	setVisible (bool vis)
	changes this object's visibility
virtual void	updateUI ()
	upates the ui according to the active LaF
virtual	~Displayable ()
Protected Types
typedef unsigned int	bits
Protected Member Functions
virtual void	doDraw (Renderer2D *r, const int &x, const int &y, const int &w, const int &h)=0
	performs subclass-specific drawing
bool	getBit (const bits &bit) const
void	setBit (const bits &bit, bool val)
Protected Attributes
Size	prefSize
Static Protected Attributes
static const bits	LSCHED
	set when this object is scheduled to be laid out
static const bits	OPQ
	opacity bit
static const bits	VIS
	visibility bit

---

Member Typedef Documentation

typedef unsigned int ONE::gui::Displayable::bits [protected]

---

Constructor & Destructor Documentation

ONE::gui::Displayable::Displayable (  bool  vis = true  )

virtual ONE::gui::Displayable::~Displayable (   )  [virtual]

---

Member Function Documentation

virtual void ONE::gui::Displayable::doDraw (  Renderer2D *  r, const int &  x, const int &  y, const int &  w, const int &  h )  [protected, pure virtual]

performs subclass-specific drawing Implementations of this function may assume that this object is visible and that r is in 2D mode. Parameters: r  the renderer used to draw this object x  the left edge of the drawable area y  the top edge of the drawable are w  the width of the drawable area h  the height of the drawable are Implemented in ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

void ONE::gui::Displayable::draw (  Renderer2D *  r, const int &  x, const int &  y, const int &  w, const int &  h )

draws a portion of this object This function calls doDraw(Renderer2D*,int,int,int,int) if this object is set to visible. Note that the renderer must be active in 2D mode. Parameters: r  the renderer used to draw this object x  the left edge of the drawn area y  the top edge of the drawn are w  the width of the drawn area h  the height of the drawn are

void ONE::gui::Displayable::draw (  Renderer2D *   )  [inline]

draws this object. This function calls draw(Renderer2D*,int,int,int,int) with this object's bounds.

Color ONE::gui::Displayable::getBackground (   )  const [inline]

accesses the color that should be used to render the object's background. Returns: a color

bool ONE::gui::Displayable::getBit (  const bits &  bit  )  const [inline, protected]

const Bounds & ONE::gui::Displayable::getBounds (   )  const [inline]

accesses this object's bounds The Bounds object represents the position of the top left corner as well as the size of this object's bounding rectangle. Returns: this object's bounds

const UIDSP & ONE::gui::Displayable::getDelegate (   )  const [inline]

virtual DelegateID ONE::gui::Displayable::getDelegateID (   )  const [pure virtual]

accesses the ID that identifies the object's UIDelegate type Subclasses of this class must override this function in order to receive a proper delegate. See LookAndFeel for details. Returns: the delegate id Implemented in ONE::gui::Button, ONE::gui::CheckBox, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::RadioButton, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::ToggleButton, ONE::gui::Viewport, and ONE::gui::Window.

Color ONE::gui::Displayable::getForeground (   )  const [inline]

accesses the color that should be used to render the object's foreground. Returns: a color

const Point & ONE::gui::Displayable::getPosition (   )  const [inline]

accesses this object's position Returns: the position of this object's top left corner

virtual Size ONE::gui::Displayable::getPreferredSize (   )  const [pure virtual]

determines this object's preferred size. If this object has a non-degenerate preferred size (i.e. Size::isZero returns false), that value is returned. Otherwise, this function calculates the optimal size for this object. Implemented in ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

const Size & ONE::gui::Displayable::getSize (   )  const [inline]

accesses this object's size Returns: the size of this object's bounding rectangle

bool ONE::gui::Displayable::isOpaque (   )  const [inline]

checks this object's opacity objects that are set to not opaque (i.e. transparent) should not draw their background display. Returns: if this object is set to opaque

bool ONE::gui::Displayable::isVisible (   )  const [inline, virtual]

acesses the visibility property The default value is true. However, subclasses may choose to change this. Returns: true if the object is visible

virtual void ONE::gui::Displayable::layout (   )  [pure virtual]

lays out this component's internal elements This function may not change this object's bounds. Implementations should lay out their internal elements according to the currently set bounds. The provided implementation de-schedules layouting for this object. Overriding classes must make sure they call Displayable::layout if not the layout function of their immediate superclass. Implemented in ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::Picture, ONE::gui::ScrollBar, ONE::gui::ScrollBarSlider, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, and ONE::gui::Window.

void ONE::gui::Displayable::scheduleLayout (   )

schedules a call to layout This function makes component layout more efficient as several calls to this function within one frame duration result in only one call to layout.

void ONE::gui::Displayable::setBackground (  const Color &  c, bool  laf = true )

changes this object's background color The setting is active immediately. If laf is true (the default), the setting is propagated to the GuiManager as an individual setting. Parameters: c  the new background color laf  if the setting should be propagated to the GuiManager

void ONE::gui::Displayable::setBit (  const bits &  bit, bool  val )  [inline, protected]

void ONE::gui::Displayable::setBounds (  const int &  x, const int &  y, const int &  w, const int &  h )  [inline]

void ONE::gui::Displayable::setBounds (  const Bounds &  b  )  [inline]

changes this object's bounds See setSize and setPosition Parameters: b  the new bounds

void ONE::gui::Displayable::setForeground (  const Color &  c, bool  laf = true )

changes this object's foreground color The setting is active immediately. If laf is true (the default), the setting is propagated to the GuiManager as an individual setting. Parameters: c  the new foreground color laf  if the setting should be propagated to the GuiManager

void ONE::gui::Displayable::setOpaque (  bool  o, bool  laf = true )

changes this object's opacity The setting is active immediately. If laf is true (the default), the setting is propagated to the GuiManager as an individual setting. Parameters: o  the new opacity setting laf  if the setting should be propagated to the GuiManager

void ONE::gui::Displayable::setPosition (  const int &  x, const int &  y )  [inline]

void ONE::gui::Displayable::setPosition (  const Point &  p  )  [inline]

changes this object's position Note that this function does not request a re-layout. Parameters: p  the new position for the object's top left corner

void ONE::gui::Displayable::setPreferredSize (  const Size &  s  )  [inline]

sets the object's preferred size If the value is set to an empty size object, the component will calculate its preferred size. Parameters: s  the preferred size or a Size object with either a width or a height of 0

void ONE::gui::Displayable::setSize (  const int &  w, const int &  h )  [inline]

void ONE::gui::Displayable::setSize (  const Size &  s  )  [inline]

changes this object's size Note that this function does not request a re-layout. Parameters: s  the new size

void ONE::gui::Displayable::setVisible (  bool  vis  )  [inline, virtual]

changes this object's visibility objects that are set to invisible will not be drawn. Note that although this does not explicitly disable user input, invisible objects are usually excluded from event multicasts. Parameters: vis  the new visibility Reimplemented in ONE::gui::Widget.

virtual void ONE::gui::Displayable::updateUI (   )  [virtual]

upates the ui according to the active LaF The default implementation updates the delegate field as well as the colors, visibility and opacity with the values provided by the look and feel. Subclasses should override this function to suit their needs. Reimplemented in ONE::gui::AbstractButton, ONE::gui::CheckBox, ONE::gui::CommandField, ONE::gui::Console, ONE::gui::Frame, ONE::gui::Label, ONE::gui::List, ONE::gui::Panel, ONE::gui::RadioButton, ONE::gui::ScrollBar, ONE::gui::TextField, ONE::gui::TitleBar, ONE::gui::Viewport, ONE::gui::Widget, and ONE::gui::Window.

---

Member Data Documentation

const bits ONE::gui::Displayable::LSCHED [static, protected]

set when this object is scheduled to be laid out

const bits ONE::gui::Displayable::OPQ [static, protected]

opacity bit

Size ONE::gui::Displayable::prefSize [protected]

const bits ONE::gui::Displayable::VIS [static, protected]

visibility bit

---
