ONE::gui::GuiManager Class Reference

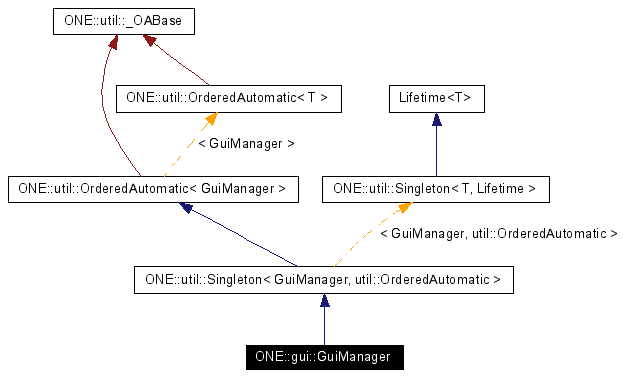

Inheritance diagram for ONE::gui::GuiManager:

[legend]List of all members.

---

Detailed Description

the main gui management interface

It provides access to the event dispatching and the focus subsystems as well as other management facilities.
The preferred way of changing the appearance and handling of GUI components is by implementing the LookAndFeel and UIDelegate interfaces and installing the LaF via the GuiManager::setLookAndFeel() function. However, properties, delegates and suchlike may also be changed manually by calling the provided setDelegate(), setProperty() etc. These may be used to specify settings for individual gui components or for all components of the specified type.

Author:

Daniel Seibert

Public Types
typedef DelegateID	ID
	component type id
typedef unsigned int	Key
	property key
typedef LazyValue< BrdDSP::Type, BrdDSP >	LazyBD
	lazy BorderDelegate
typedef SmartPointer< LazyBD >	LazyBDSP
	smart pointer to lazy BorderDelegate
typedef LazyValue< FntSP::Type, FntSP >	LazyFont
	lazy Font
typedef SmartPointer< LazyFont >	LazyFontSP
	smart pointer to lazy Font
typedef LazyValue< IconSP::Type, IconSP >	LazyIcon
	lazy Icon
typedef SmartPointer< LazyIcon >	LazyIconSP
	smart pointer to lazy Icon
typedef LazyValue< UIDSP::Type, UIDSP >	LazyUID
	lazy UIDelegate
typedef SmartPointer< LazyUID >	LazyUIDSP
	smart pointer to lazy UIDelegate
typedef unsigned int	Type
	color type
Public Member Functions
void	clearGeneralSettings ()
	clears all general settings
void	clearIndividualSettings ()
	clears all individual settings
const BrdSP &	getBorder (const Bordered *obj, const BrdSP &def=0) const
	accesses the border registered for obj
Color	getColor (const Displayable *obj, const Type &type, const Color &def=Color()) const
	accesses the type color for obj
ConsoleManager *	getConsoleManager () const
	accesses the ConsoleManager
BrdDSP	getDelegate (const ID &borderType, const BrdDSP &def=0) const
	accesses the delegate registered for the given border type
UIDSP	getDelegate (const Displayable *obj, const UIDSP &def=0) const
	accesses the delegate registered for obj
FocusManager *	getFocusManager () const
	accesses the FocusManager
FntSP	getFont (const Displayable *obj, const FntSP &def=0) const
	accesses the font for obj
IconSP	getIcon (const Displayable *obj, const IconID &iid, const IconSP &def=0) const
	accesses the icon for obj
IMSP	getInputMap (const Displayable *obj, const IMSP &def=0) const
	accesses the input map for obj
LaFSP	getLookAndFeel () const
	accesses the currently active LaF
EventMulticaster *	getMulticaster () const
	accesses the EventMulticaster
Value	getProperty (const Displayable *obj, const Key &key, const Value &def=Value()) const
	accesses the value of obj 's key property
RenderStub *	getRenderStub () const
	provides access to the GUI render stub
void	restoreLookAndFeel ()
	resets the general settings to the ones provided by the active LaF
void	setBorder (const ID &did, const BrdSP &b)
	installs a border for a class of objects
void	setBorder (const Bordered *obj, const BrdSP &b)
	specifies a border for obj
void	setColor (const ID &did, const Type &type, const Color &c)
	specifies a color for a class of objects
void	setColor (const Displayable *obj, const Type &type, const Color &c)
	specifies a color for obj
void	setDelegate (const ID &borderType, const BrdDSP &del)
	installs the delegate for a border type
void	setDelegate (const ID &borderType, const LazyBDSP &del)
	installs the delegate for a border type
void	setDelegate (const ID &did, const UIDSP &del)
	installs a delegate for a class of objects
void	setDelegate (const ID &did, const LazyUIDSP &del)
	installs a delegate for a class of objects
void	setDelegate (const Displayable *obj, const UIDSP &del)
	installs a delegate for an individual object
void	setDelegate (const Displayable *obj, const LazyUIDSP &del)
	installs a delegate for an individual object
void	setFont (const ID &did, const FntSP &f)
	installs a font for a class of objects
void	setFont (const ID &did, const LazyFontSP &f)
	installs a font for a class of objects
void	setFont (const Displayable *obj, const FntSP &f)
	installs a font for an individual object
void	setFont (const Displayable *obj, const LazyFontSP &f)
	installs a font for an individual object
void	setIcon (const ID &did, const IconID &iid, const IconSP &icon)
	installs an icon for a class of objects
void	setIcon (const ID &did, const IconID &iid, const LazyIconSP &icon)
	installs an icon for a class of objects
void	setIcon (const Displayable *obj, const IconID &iid, const IconSP &icon)
	installs an icon for an individual object
void	setIcon (const Displayable *obj, const IconID &iid, const LazyIconSP &icon)
	installs an icon for an individual object
void	setInputMap (const ID &did, const IMSP &map)
	specifies the input map for a class of objects.
void	setInputMap (const Displayable *obj, const IMSP &map)
	specifies the input map for obj
void	setLookAndFeel (const LaFSP &laf)
	changes the look and feel
void	setProperty (const ID &did, const Key &key, const Value &val)
	changes the key property of a class of objects
void	setProperty (const Displayable *obj, const Key &key, const Value &val)
	changes obj 's key property
void	updateUI () const
	updates all user interface elements
Static Public Member Functions
static void	destroyInstance ()
	may be used to manually destroy the singleton instance
static GuiManager *	getInstance ()
	accesses the singleton instance
static bool	isActive ()
	checks if the singleton is active
static bool	isDestroyed ()
	checks if the singleton is destroyed
static bool	isVirgin ()
	checks if the singleton has not been initialized
static void	setPriority (unsigned short)
	sets this singleton's shutdown priority
Static Public Attributes
static const BrdSP	CLEAR_BORDER
	used to remove border properties
static const Value	CLEAR_VALUE
	used to remove properties
static FntSP	DEFAULT_FONT
	the default font
Protected Member Functions
	Singleton ()
Static Protected Member Functions
static void	destroyedError ()
static void	initInstance ()
Classes
struct	Value

---

Member Typedef Documentation

typedef DelegateID ONE::gui::GuiManager::ID

component type id

typedef unsigned int ONE::gui::GuiManager::Key

property key

typedef LazyValue<BrdDSP::Type,BrdDSP> ONE::gui::GuiManager::LazyBD

lazy BorderDelegate

typedef SmartPointer<LazyBD> ONE::gui::GuiManager::LazyBDSP

smart pointer to lazy BorderDelegate

typedef LazyValue<FntSP::Type,FntSP> ONE::gui::GuiManager::LazyFont

lazy Font

typedef SmartPointer<LazyFont> ONE::gui::GuiManager::LazyFontSP

smart pointer to lazy Font

typedef LazyValue<IconSP::Type,IconSP> ONE::gui::GuiManager::LazyIcon

lazy Icon

typedef SmartPointer<LazyIcon> ONE::gui::GuiManager::LazyIconSP

smart pointer to lazy Icon

typedef LazyValue<UIDSP::Type,UIDSP> ONE::gui::GuiManager::LazyUID

lazy UIDelegate

typedef SmartPointer<LazyUID> ONE::gui::GuiManager::LazyUIDSP

smart pointer to lazy UIDelegate

typedef unsigned int ONE::gui::GuiManager::Type

color type

---

Member Function Documentation

void ONE::gui::GuiManager::clearGeneralSettings (   )

clears all general settings This function should not be called by client code.

void ONE::gui::GuiManager::clearIndividualSettings (   )

clears all individual settings This function leaves the general settings intact regardless of whether they were imposed by the LaF or the user. These settings may be restored to the LaF's defaults by calling GuiManager::restoreLookAndFeel()

static void ONE::util::OrderedAutomatic< GuiManager >::destroyedError (   )  [static, protected, inherited]

static void ONE::util::OrderedAutomatic< GuiManager >::destroyInstance (   )  [static, inherited]

may be used to manually destroy the singleton instance If this function is not called, the instance is destroyed automatically during shutdown.

const BrdSP& ONE::gui::GuiManager::getBorder (  const Bordered *  obj, const BrdSP &  def = 0 )  const

accesses the border registered for obj If an individual border is found for obj, that border is returned. Otherwise the border for obj 's type is returned. If no border was registered for that type, this function returns the default border or def if no default was specified. Parameters: obj  a bordered component def  an optional default value Returns: a border as specified above

Color ONE::gui::GuiManager::getColor (  const Displayable *  obj, const Type &  type, const Color &  def = Color() )  const

accesses the type color for obj If an individual color is set for obj, that color is returned. Otherwise this function returns the color registered for obj 's type, the default type, or def. Parameters: obj  a gui component type  the type of the color to retrieve def  an optional default value Returns: the color as specified above

ConsoleManager * ONE::gui::GuiManager::getConsoleManager (   )  const [inline]

accesses the ConsoleManager Returns: a pointer to the console manager

BrdDSP ONE::gui::GuiManager::getDelegate (  const ID &  borderType, const BrdDSP &  def = 0 )  const

accesses the delegate registered for the given border type This function returns the delegate registered for borderType, the default border, or def. Parameters: borderType  the requested type def  an optional default value Returns: a delegate as specified above

UIDSP ONE::gui::GuiManager::getDelegate (  const Displayable *  obj, const UIDSP &  def = 0 )  const

accesses the delegate registered for obj If an individual delegate object is installed, that delegate is returned. Otherwise the delegate for obj 's type is returned. If no delegate was registered for that type, this function returns the default delegate or def if no default was specified. Parameters: obj  a gui component def  an optional default value Returns: a delegate object as specified above

FocusManager * ONE::gui::GuiManager::getFocusManager (   )  const [inline]

accesses the FocusManager Returns: a pointer to the focus manager

FntSP ONE::gui::GuiManager::getFont (  const Displayable *  obj, const FntSP &  def = 0 )  const

accesses the font for obj This function returns the first of the following values that is found: the font registered for obj the font registered for obj 's class the font registered for the default component class def Parameters: obj  a gui component def  an optional default value Returns: a font as specified above

IconSP ONE::gui::GuiManager::getIcon (  const Displayable *  obj, const IconID &  iid, const IconSP &  def = 0 )  const

accesses the icon for obj This function returns the first of the following values that is found: the icon registered for obj the icon registered for obj 's class the icon registered for the default component class def Parameters: obj  a gui component iid  the icon type def  an optional default value Returns: an icon as specified above

IMSP ONE::gui::GuiManager::getInputMap (  const Displayable *  obj, const IMSP &  def = 0 )  const

accesses the input map for obj This function returns the input map for obj, obj 's class, the default component class or def, depending on which value is found first. Returns: an input map as specified above

static GuiManager * ONE::util::Singleton< GuiManager , util::OrderedAutomatic >::getInstance (   )  [static, inherited]

accesses the singleton instance The exact operation executed by calling this function is determined by the singleton policies. Returns: a pointer to the singleton instance

LaFSP ONE::gui::GuiManager::getLookAndFeel (   )  const

accesses the currently active LaF Returns: the active LaF

EventMulticaster * ONE::gui::GuiManager::getMulticaster (   )  const [inline]

accesses the EventMulticaster Returns: a pointer to the event multicaster

Value ONE::gui::GuiManager::getProperty (  const Displayable *  obj, const Key &  key, const Value &  def = Value() )  const

accesses the value of obj 's key property If an individual property with the given name is specified for obj it is returned. Otherwise the general property's value or def is returned. The returned value may be implicitly converted to any of the types accepted by setProperty. Parameters: obj  a gui component key  the desired property def  an optional default value Returns: the value as specified above

RenderStub * ONE::gui::GuiManager::getRenderStub (   )  const [inline]

provides access to the GUI render stub The stub is used to render the graphical user interface. Returns: a pointer to the render stub

static void ONE::util::OrderedAutomatic< GuiManager >::initInstance (   )  [static, protected, inherited]

static bool ONE::util::Singleton< GuiManager , util::OrderedAutomatic >::isActive (   )  [static, inherited]

checks if the singleton is active Returns: if the singleton is instantiated

static bool ONE::util::Singleton< GuiManager , util::OrderedAutomatic >::isDestroyed (   )  [static, inherited]

checks if the singleton is destroyed This function returns true if an instance existed and was destroyed. Note that in some cases it is possible to revive a singleton. Returns: if the singleton is destroyed

static bool ONE::util::Singleton< GuiManager , util::OrderedAutomatic >::isVirgin (   )  [static, inherited]

checks if the singleton has not been initialized A singleton is not initialized if no instance exists and no instance has been destroyed. Returns: if the singleton is untouched

void ONE::gui::GuiManager::restoreLookAndFeel (   )

resets the general settings to the ones provided by the active LaF Individual settings remain untouched by this function; they may be cleared by calling GuiManager::clearIndividualSettings()

void ONE::gui::GuiManager::setBorder (  const ID &  did, const BrdSP &  b )

installs a border for a class of objects The setting may be cleared by passing a 0 border pointer. Parameters: did  the target type delegate ID b  the new border

void ONE::gui::GuiManager::setBorder (  const Bordered *  obj, const BrdSP &  b )

specifies a border for obj Since components may explicitly be set to no border, this property may be cleared by passing CLEAR_BORDER as the new border value. Parameters: obj  the target of the operation b  the new border

void ONE::gui::GuiManager::setColor (  const ID &  did, const Type &  type, const Color &  c )

specifies a color for a class of objects The setting may be cleared by passing a 0 color pointer. Parameters: did  the target type delegate ID type  the type of color, i.e. background, foreground etc c  the new color

void ONE::gui::GuiManager::setColor (  const Displayable *  obj, const Type &  type, const Color &  c )

specifies a color for obj The setting may be cleared by passing a 0 color pointer. Parameters: obj  the target of the operation type  the type of color, i.e. background, foreground etc c  the new color

void ONE::gui::GuiManager::setDelegate (  const ID &  borderType, const BrdDSP &  del )

installs the delegate for a border type This function calls setDelegate(ID&,LazyBDSP&). That function should be preferred over this one as it permits lazy instantiation of potentially large delegates. This function may be used to clear a delegate setting by passing in 0 as the new delegate pointer. Parameters: borderType  the border's type del  the new delegate or 0 to clear the setting

void ONE::gui::GuiManager::setDelegate (  const ID &  borderType, const LazyBDSP &  del )

installs the delegate for a border type Since Border instances are usually shared, this setting is not possible for individual borders. This function may be used to clear a delegate setting by passing in 0 as the new delegate pointer. Parameters: borderType  the border's type del  the new delegate or 0 to clear the setting

void ONE::gui::GuiManager::setDelegate (  const ID &  did, const UIDSP &  del )

installs a delegate for a class of objects This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setDelegate(ID&,LazyUIDSP&). That function should be preferred, as it permits lazy instantiation of large delegates. This function may be used to remove a general setting by passing 0 as the new delegate pointer. Individual settings remain untouched by this. Parameters: did  the target type delegate ID del  the new delegate or 0 to remove the setting

void ONE::gui::GuiManager::setDelegate (  const ID &  did, const LazyUIDSP &  del )

installs a delegate for a class of objects If not already initialized, the passed-in value will be instantiated when it is first requested. If a value for did is already set, the old value will be overwritten. This function may be used to remove a general setting by passing 0 as the new delegate pointer. Individual settings remain untouched by this. Parameters: did  the target type delegate ID del  the delegate or 0 to remove the setting

void ONE::gui::GuiManager::setDelegate (  const Displayable *  obj, const UIDSP &  del )

installs a delegate for an individual object This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setDelegate(Displayable*,LazyUIDSP&). That function should be preferred, as it permits lazy instantiation of large delegates. This function may be used to remove an individual setting by passing 0 as the new delegate pointer. General settings remain untouched by this. Parameters: obj  the target of the operation del  the new delegate or 0 to remove the setting

void ONE::gui::GuiManager::setDelegate (  const Displayable *  obj, const LazyUIDSP &  del )

installs a delegate for an individual object If not already initialized, the passed-in value will be instantiated when it is first requested. If a value for obj is already set, the old value will be overwritten. This function may be used to remove an individual setting by passing 0 as the new delegate pointer. General settings remain untouched by this. Parameters: obj  the target of the operation del  the new delegate or 0 to remove the setting

void ONE::gui::GuiManager::setFont (  const ID &  did, const FntSP &  f )

installs a font for a class of objects This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setFont(ID&,LazyFontSP&). That function should be preferred over this one as it allows the creation of large fonts to be delayed until they are actually needed. This function may also be used to remove a general font setting by passing in 0 as the new font pointer. Individual settings remain untouched by this. Parameters: did  the target of the operation f  the new font or 0 to remove the setting

void ONE::gui::GuiManager::setFont (  const ID &  did, const LazyFontSP &  f )

installs a font for a class of objects If not already initialized, f will not be instantiated until it is actually needed. If a value for did is already set, the old value will be overwritten. This function may also be used to remove a general font setting by passing in 0 as the new font pointer. Individual settings remain untouched by this. Parameters: did  the target of the operation f  the new font or 0 to remove the setting

void ONE::gui::GuiManager::setFont (  const Displayable *  obj, const FntSP &  f )

installs a font for an individual object This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setFont(Displayable*,LazyFontSP&). That function should be preferred over this one as it allows the creation of large fonts to be delayed until they are actually needed. This function may also be used to remove an individual font setting by passing in 0 as the new font pointer. General settings remain untouched by this. Parameters: obj  the target of the operation f  the new font or 0 to remove the setting

void ONE::gui::GuiManager::setFont (  const Displayable *  obj, const LazyFontSP &  f )

installs a font for an individual object If not already initialized, f will not be instantiated until it is actually needed. If a value for obj is already set, the old value will be overwritten. This function may also be used to remove an individual font setting by passing in 0 as the new font pointer. General settings remain untouched by this. Parameters: obj  the target of the operation f  the new font or 0 to remove the setting

void ONE::gui::GuiManager::setIcon (  const ID &  did, const IconID &  iid, const IconSP &  icon )

installs an icon for a class of objects This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setIcon(ID&,IconID&,LazyIconSP&). That function should be preferred over this one as it allows the creation of large icons to be delayed until they are actually needed. This function may also be used to remove a general icon setting by passing in 0 as the new icon pointer. Individual settings remain untouched by this. Parameters: did  the target of the operation iid  the icon type icon  the new icon or 0 to remove the setting

void ONE::gui::GuiManager::setIcon (  const ID &  did, const IconID &  iid, const LazyIconSP &  icon )

installs an icon for a class of objects If not already initialized, icon will not be instantiated until it is actually needed. If a value for did is already set, the old value will be overwritten. This function may also be used to remove a general icon setting by passing in 0 as the new icon pointer. Individual settings remain untouched by this. Parameters: did  the target of the operation iid  the icon type icon  the new icon or 0 to remove the setting

void ONE::gui::GuiManager::setIcon (  const Displayable *  obj, const IconID &  iid, const IconSP &  icon )

installs an icon for an individual object This function creates an initialized (i.e. non-lazy) LazyValue and passes it to setIcon(Displayable*,IconID&,LazyIconSP&). That function should be preferred over this one as it allows the creation of large icons to be delayed until they are actually needed. This function may also be used to remove an individual icon setting by passing in 0 as the new icon pointer. General settings remain untouched by this. Parameters: obj  the target of the operation iid  the icon type icon  the new icon or 0 to remove the setting

void ONE::gui::GuiManager::setIcon (  const Displayable *  obj, const IconID &  iid, const LazyIconSP &  icon )

installs an icon for an individual object If not already initialized, icon will not be instantiated until it is actually needed. If a value for obj is already set, the old value will be overwritten. This function may also be used to remove an individual icon setting by passing in 0 as the new icon pointer. General settings remain untouched by this. Parameters: obj  the target of the operation iid  the icon type icon  the new icon or 0 to remove the setting

void ONE::gui::GuiManager::setInputMap (  const ID &  did, const IMSP &  map )

specifies the input map for a class of objects. The setting may be cleared by passing a 0 map. Parameters: did  the target type's delegate ID map  the new input map

void ONE::gui::GuiManager::setInputMap (  const Displayable *  obj, const IMSP &  map )

specifies the input map for obj The setting may be removed by passing a 0 value. Parameters: obj  the target map  the new input map

void ONE::gui::GuiManager::setLookAndFeel (  const LaFSP &  laf  )

changes the look and feel This function installs laf and then invokes LookAndFeel::install(). The general settings are cleared before that operation. Properties that are not set by the LaF will yield the respective default values when requested. The individual settings remain untouched by this operation. They may be cleared by calling GuiManager::clearIndividualSettings(). This function may be called with a 0 pointer as the laf parameter in order to manually clear the active look and feel. This may be useful when the look's shutdown procedure relies on other objects which may no longer exist when the GUI manager is destroyed. Note, however, that most functions provided by this class will fail after the LaF was cleared. Parameters: laf  the new look and feel or a 0 pointer to manually clear the LaF Exceptions: InvalidArgumentException  if laf could not be installed

static void ONE::util::OrderedAutomatic< GuiManager >::setPriority (  unsigned  short  )  [static, inherited]

sets this singleton's shutdown priority The higher the priority, the earlier the instance will be destroyed during shutdown. If the priority is changed, the highest given priority will be used.

void ONE::gui::GuiManager::setProperty (  const ID &  did, const Key &  key, const Value &  val )

changes the key property of a class of objects The value may be of one of the following types: bool char int float void* If val is a pointer, that pointer must be deleted manually when no longer in use. The property may be cleared by passing GuiManager::CLEAR_VALUE. Parameters: did  the target type delegate ID key  the desired property val  the property's value

void ONE::gui::GuiManager::setProperty (  const Displayable *  obj, const Key &  key, const Value &  val )

changes obj 's key property The value may be of one of the following types: bool char int float void* If val is a pointer, that pointer must be deleted manually when no longer in use. The property may be cleared by passing GuiManager::CLEAR_VALUE. Parameters: obj  the target of the operation key  the desired property val  the property's value

ONE::util::Singleton< GuiManager , util::OrderedAutomatic >::Singleton (   )  [protected, inherited]

void ONE::gui::GuiManager::updateUI (   )  const

updates all user interface elements This function is comparatively slow and should only be called after all necessary changes have been made. Changes that need a call to this function in order to take effect include: setLookAndFeel restoreLookAndFeel clearGeneralSettings clearIndividualSettings the general setXxxx functions While calling this function works after calling the individual setXxxx functions, it is recommended to call Displayable::updateUI() on the affected objects as this avoids updating the whole component tree.

---

Member Data Documentation

const BrdSP ONE::gui::GuiManager::CLEAR_BORDER [static]

used to remove border properties

const Value ONE::gui::GuiManager::CLEAR_VALUE [static]

used to remove properties

FntSP ONE::gui::GuiManager::DEFAULT_FONT [static]

the default font

---
