ONE::render::RenderSystem Class Reference

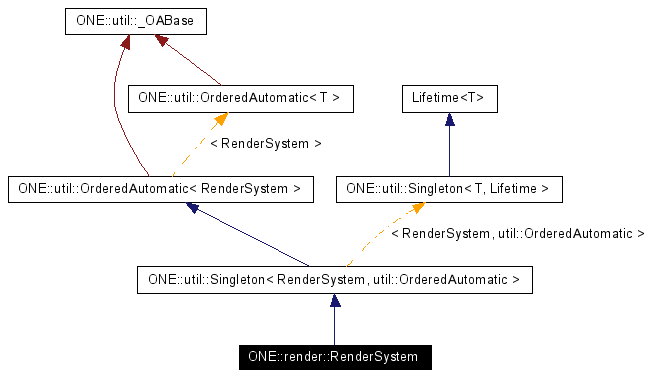

Inheritance diagram for ONE::render::RenderSystem:

[legend]List of all members.


Public Member Functions
void	add (RenderListEntry *_renderable)
void	addModelToInit (BaseModel *model)
void	clear ()
void	generateShadowMap (ONE::scene::SolidEntity shadowCaster, TextureRef shadowMap, RenderDevice rd, Matrix4 &lightMVP)
void	generateShadowMap (ONE::scene::SolidEntity shadowCaster, RenderDevice rd, Matrix4 &lightMVP)
void	generateShadowMap (RenderDevice *rd, Matrix4 &lightMVP)
Vector2	getLightLookUpTexCoords (Vector3 pos)
void	initModels ()
void	remove (RenderListEntry *_renderable)
void	render (G3D::RenderDevice *rd)
	RenderSystem ()
void	RenderSystem::currentShadowCasterTest (G3D::RenderDevice *rd)
void	sortRenderables ()
void	swap (int i, int j)
void	updateOptions ()
void	useRenderProperties (G3D::RenderDevice rd, const RenderProperties rp)
Static Public Member Functions
static void	destroyInstance ()
	may be used to manually destroy the singleton instance
static RenderSystem *	getInstance ()
	accesses the singleton instance
static bool	isActive ()
	checks if the singleton is active
static bool	isDestroyed ()
	checks if the singleton is destroyed
static bool	isVirgin ()
	checks if the singleton has not been initialized
static void	setPriority (unsigned short)
	sets this singleton's shutdown priority
Public Attributes
string	activeShader
G3D::Color3	ambientLightColor
Matrix4	biasMatrix
bool	clear_arrays
G3D::Color3	directionalLightColor
G3D::Vector3	directionalLightDir
float	farPlane
G3D::Color4	fogColor
CoordinateFrame	lightCFrame
TextureRef	lightLookUp
float	lightLookUpScale
GFontRef	namefont
G3D::Array< ONE::scene::SolidEntity * >	shadowCasters
unsigned int	states
Protected Types
typedef util::OrderedAutomatic< RenderSystem >	Friendly
Protected Member Functions
	Singleton ()
Static Protected Member Functions
static void	destroyedError ()
static void	initInstance ()
Protected Attributes
G3D::Array< RenderListEntry * >	backgroundRenderables
G3D::Array< ONE::scene::SolidEntity * >	currentShadowCasters
Matrix4	lightMVP [4]
G3D::Array< RenderListEntry * >	renderables
Matrix4	textureMatrix [4]
bool	useblur
bool	useshaders
bool	useshadowmap
bool	useshadowmapsmoother
bool	usetonemapping

Member Typedef Documentation

typedef util::OrderedAutomatic <RenderSystem > ONE::util::Singleton< RenderSystem , util::OrderedAutomatic >::Friendly [protected, inherited]

subclasses should declare this type their friend in order to allow access to ctor and dtor, as those should generally be made private.

Constructor & Destructor Documentation

ONE::render::RenderSystem::RenderSystem ( )

Member Function Documentation

void ONE::render::RenderSystem::add ( RenderListEntry * _renderable )

void ONE::render::RenderSystem::addModelToInit ( BaseModel * model )

void ONE::render::RenderSystem::clear ( )

static void ONE::util::OrderedAutomatic< RenderSystem >::destroyedError ( ) [static, protected, inherited]

static void ONE::util::OrderedAutomatic< RenderSystem >::destroyInstance ( ) [static, inherited]

may be used to manually destroy the singleton instance
If this function is not called, the instance is destroyed automatically during shutdown.

void ONE::render::RenderSystem::generateShadowMap ( ONE::scene::SolidEntity * shadowCaster,

TextureRef shadowMap,

RenderDevice * rd,

Matrix4 & lightMVP

)

void ONE::render::RenderSystem::generateShadowMap ( ONE::scene::SolidEntity * shadowCaster,

RenderDevice * rd,

Matrix4 & lightMVP

)

void ONE::render::RenderSystem::generateShadowMap ( RenderDevice * rd,

Matrix4 & lightMVP

)

static RenderSystem * ONE::util::Singleton< RenderSystem , util::OrderedAutomatic >::getInstance ( ) [static, inherited]

accesses the singleton instance
The exact operation executed by calling this function is determined by the singleton policies.

Returns:
a pointer to the singleton instance

Vector2 ONE::render::RenderSystem::getLightLookUpTexCoords ( Vector3 pos ) [inline]

static void ONE::util::OrderedAutomatic< RenderSystem >::initInstance ( ) [static, protected, inherited]

void ONE::render::RenderSystem::initModels ( )

static bool ONE::util::Singleton< RenderSystem , util::OrderedAutomatic >::isActive ( ) [static, inherited]

checks if the singleton is active

Returns:
if the singleton is instantiated

static bool ONE::util::Singleton< RenderSystem , util::OrderedAutomatic >::isDestroyed ( ) [static, inherited]

checks if the singleton is destroyed
This function returns true if an instance existed and was destroyed. Note that in some cases it is possible to revive a singleton.

Returns:
if the singleton is destroyed

static bool ONE::util::Singleton< RenderSystem , util::OrderedAutomatic >::isVirgin ( ) [static, inherited]

checks if the singleton has not been initialized
A singleton is not initialized if no instance exists and no instance has been destroyed.

Returns:
if the singleton is untouched

void ONE::render::RenderSystem::remove ( RenderListEntry * _renderable )

void ONE::render::RenderSystem::render ( G3D::RenderDevice * rd )

void ONE::render::RenderSystem::RenderSystem::currentShadowCasterTest ( G3D::RenderDevice * rd )

static void ONE::util::OrderedAutomatic< RenderSystem >::setPriority ( unsigned short ) [static, inherited]

sets this singleton's shutdown priority
The higher the priority, the earlier the instance will be destroyed during shutdown. If the priority is changed, the highest given priority will be used.
